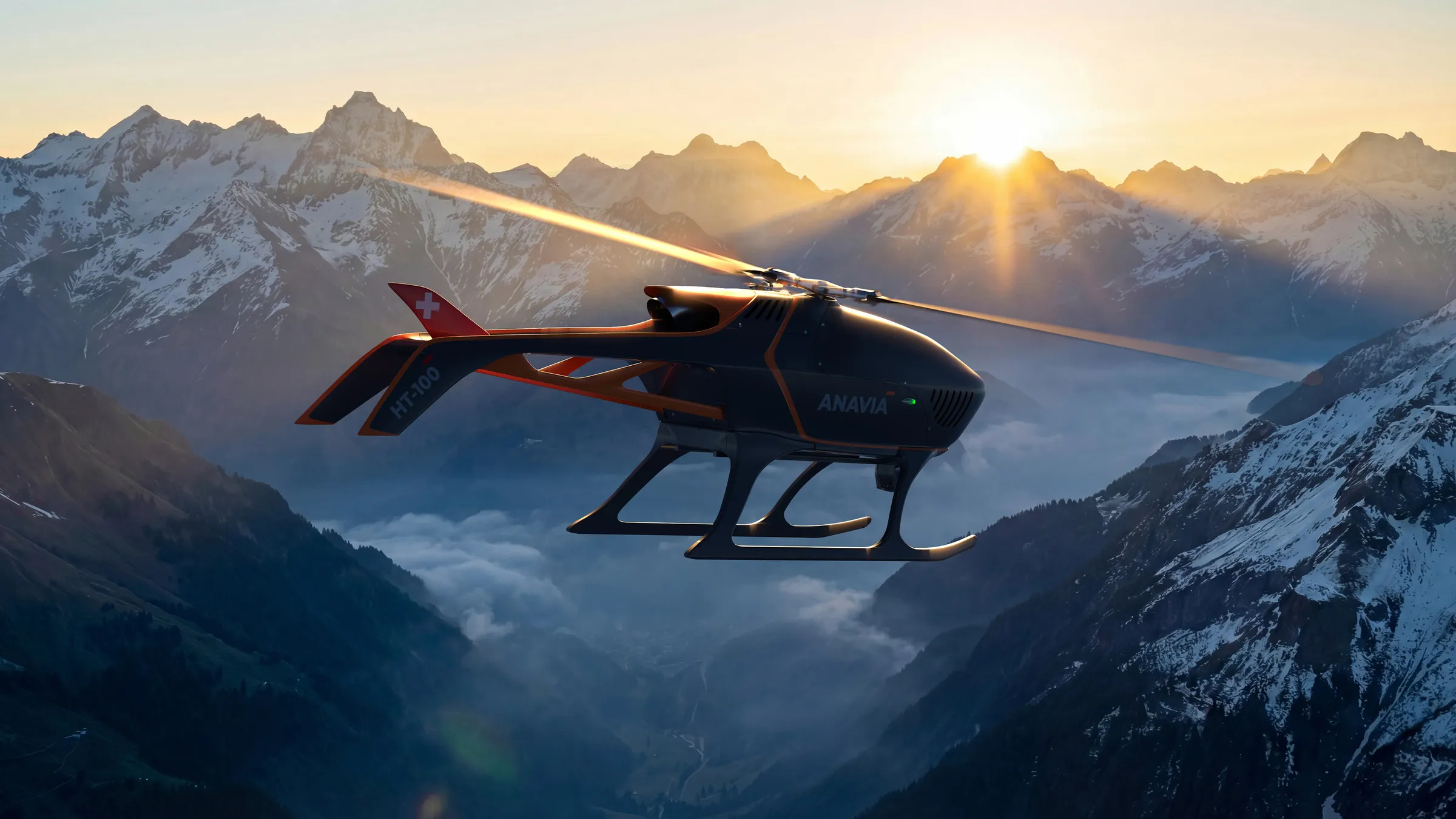

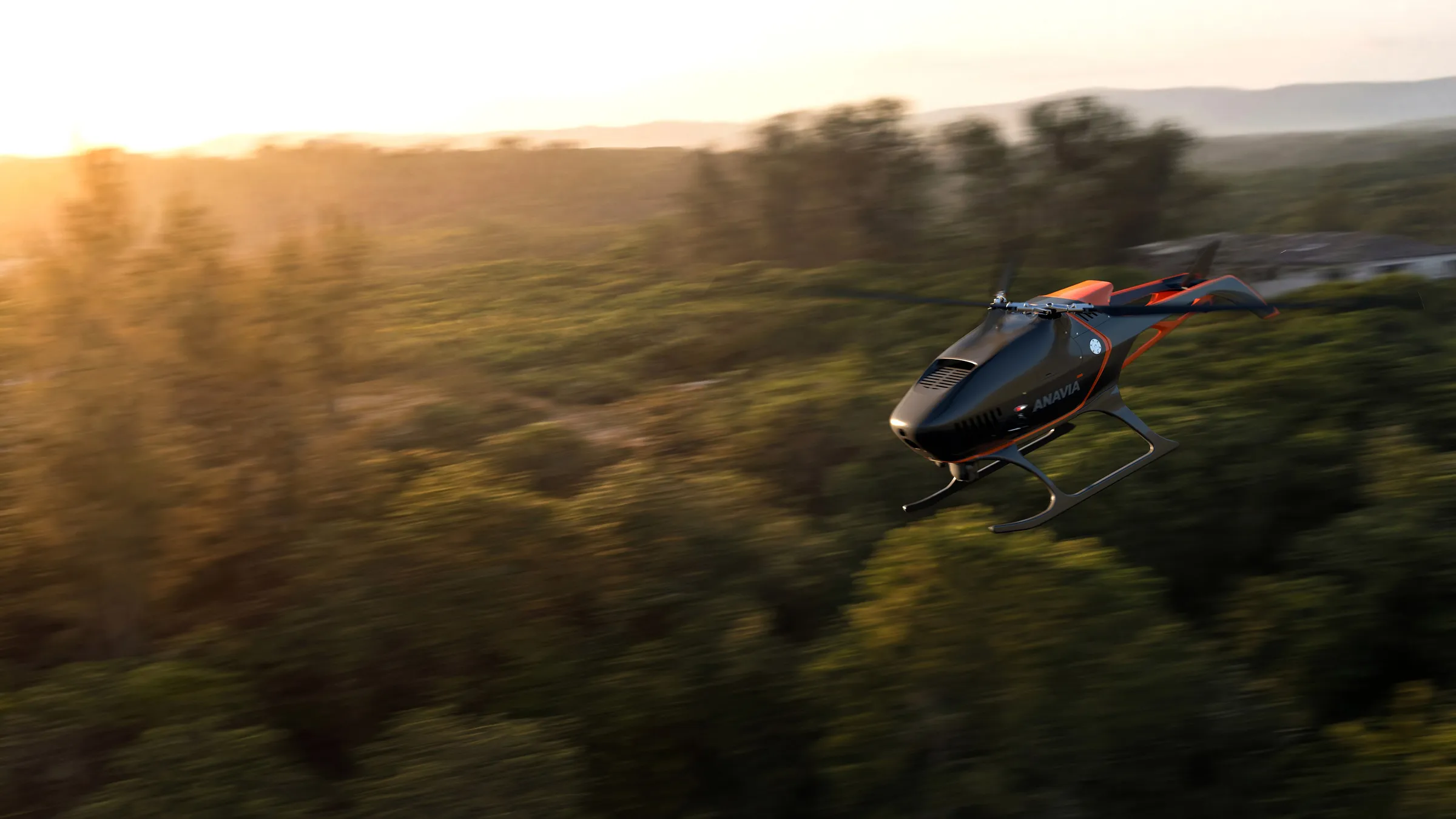

The ANAVIA HT-100 is a heavy-duty, long-range unmanned aerial vehicle (UAV) for autonomous flight operations. It is categorized as a vertical take-off and landing (VTOL) aircraft with intermeshing rotors for lift generation. The design allows for modularity to cover a broad range of missions (e.g., intelligence, surveillance and reconnaissance, inspection, commercial logistics, search & rescue, and photometry).
The HT-100 unmanned helicopter was designed to take over missions traditionally flown by manned helicopters, carrying the same grade of ISR equipment/cargo/multi-mission payloads at a fraction of the investment and per-hour flight costs.
The HT-100 operates with a custom, Swiss built 15 kW turbine engine burning only 9 l/h of commonly available JET A-1 / JP-5 / JP-8 fuel. The aircraft offers a long endurance of up to 6 hours per mission and/or a maximum payload of 60 kilograms. A short refueling stop allows for the entire mission spectrum to be available again with no battery re-charge or switching limitations.

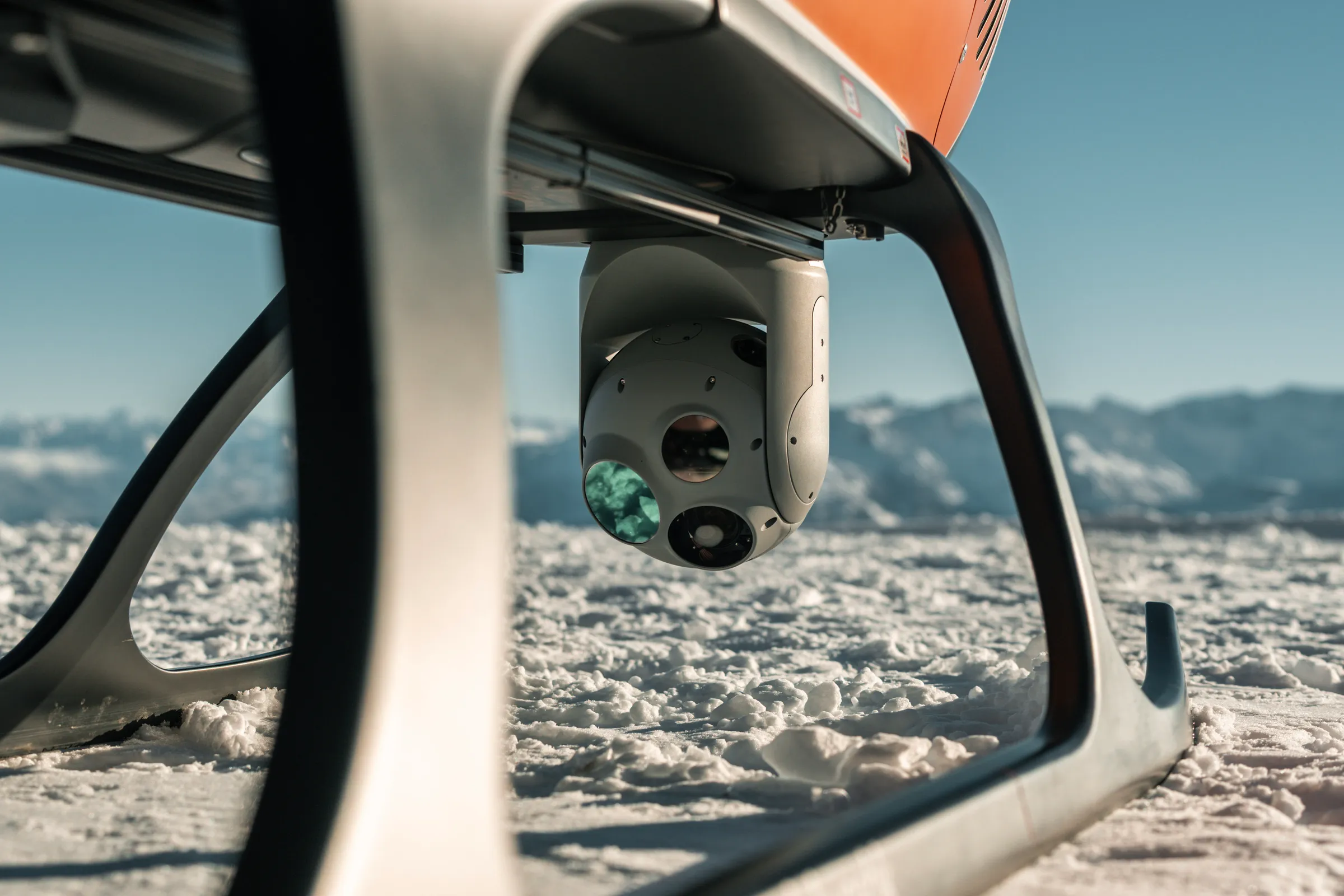

A cruise speed of 100 km/hr is easily attained in the harshest of weather conditions. A full endurance of 600 km still allows for 23 kg of sensor or cargo payload. This is the heaviest sensor payload spec available on the market. A custom-built avionics box allows for a highly modular connection interface, giving a ‘plug and play’ capability to virtually all sensors.
- Efficient dual inter-meshing Flettner main rotors (no tail rotor, less vibration)
- Full high-tech carbon composite structure for longevity and high-performance
- Diverse digital data link options: terrestrial (up to 200km) / optional LTE / Satcom
- Flight control redundancy with four actuators
- Low maintenance, high reliability
- Turbine JET A-1 powered engine
- Autorotation capability
- ITAR free
TECHNICAL DATA
| Turbine | 15 kW shaft turbine |
| Rotor | Flettner double rotor system |
| Typical empty weight | 65 kg (143 lbs) |
| Tank capacity | 60 liters (15.8 gallons) |
| Fuel types | Jet A1 – other fuel types on demand (JP-8, JP-5) |
| Fuel consumption | 9 l/h |
| Data link type | Fully encrypted MESH IP (SATCOM and LTE on demand) |
| Data link range | Radio and antenna configuration up to 200 km (depending on terrain topography and national regulations) |
| Operating temperature | -25 °C to +55 °C, -13 °F to +131 °F |
| Max. wind speed | 45 km/h (25 kn) |
| Start and landing | Fully autonomous |
PERFORMANCE
| Max. flight time | 360 minutes |
| Max. airspeed | 120 km/h (65 kn) |
| Max. flight mission/ payload weight | 1 hrs / 51 kg, 2 hrs / 43 kg, 4 hrs / 28 kg, 6 hrs / 14 kg |
| Max. take-off weight | 120 kg (264 lbs) |
| Max. payload and fuel | 55 kg (121 lbs) |
| Operating ceiling | (max. density altitude) 4,000 m (13,123 ft) |
DIMENSIONS
| Rotor diameter | 3.75 m (12.00 ft) |
| Dimensions (excluding rotors) L / W / H | 2.82 m (9.25 ft) x 0.72 m (2.36 ft) x 1.00 m (3.28 ft) |
